AG1000 Clean Bench (Single People/Single Side)

products

AG1000 Clean Bench (Single People/Single Side)

short description:

Use

Providing protection for samples and work procedures, it’s vertical-flow recirculating air clean bench.


Product Detail

Product Tags

Key Features:

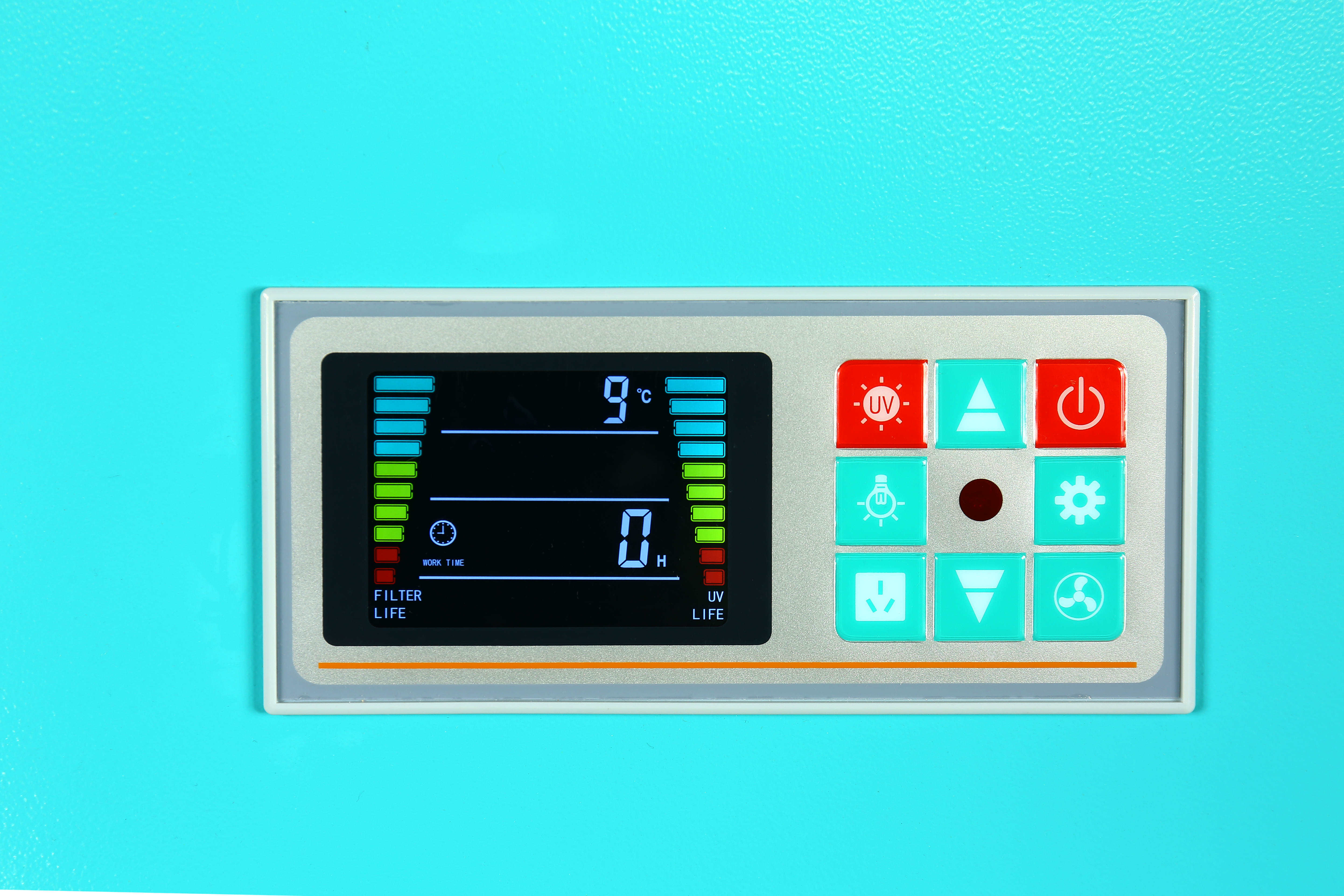

❏ Color LCD display control panel
▸ Push-button operation, three levels of airflow speed adjustable
▸ Real-time display of air speed, operating time, percentage of remaining life of filter and UV lamp, and ambient temperature in one interface

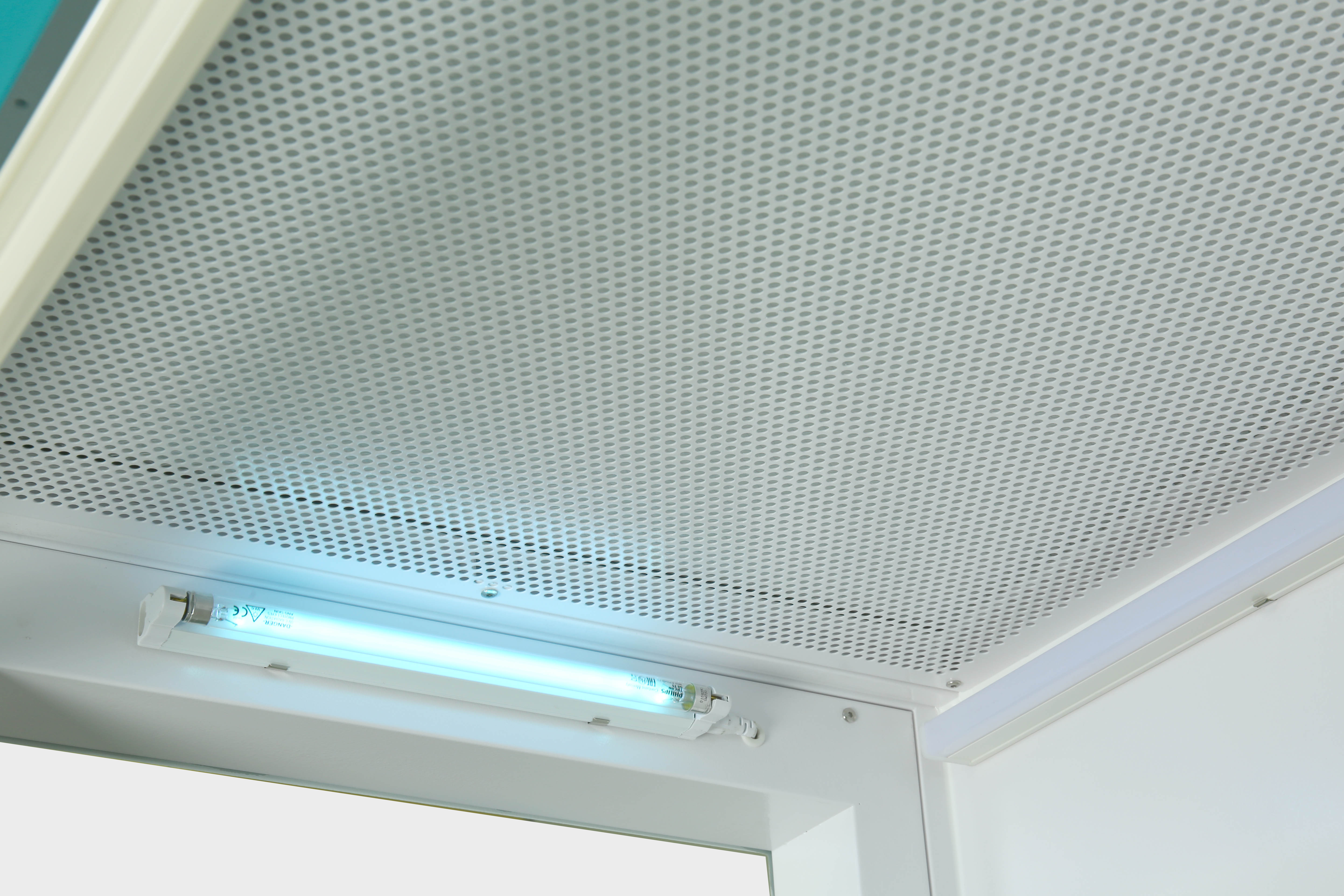

▸ Provide UV sterilization lamp, filter to be replaced warning function

❏ Adopt arbitrary positioning suspension lifting system
▸ The front window of the clean bench adopts 5mm thick tempered glass, and the glass door adopts arbitrary positioning suspension lifting system, which is flexible and convenient to open up and down, and can be suspended at any height within the travel range

❏ Lighting and sterilization interlock function
▸ Lighting and sterilization interlock function effectively avoids accidental opening of the sterilization function during work, which may harm the samples and personnel

❏ Humanized design
▸ The work surface is made of 304 stainless steel, corrosion-resistant and easy to clean
▸ Double side-wall glass window design, broad field of vision, good lighting, convenient observation
▸ Full coverage of clean airflow in the working area, with stable and reliable air velocity
▸ With spare socket design, safe and convenient to use
▸ With pre-filter, it can effectively intercept large particles and impurities, effectively extending the service life of HEPA filter

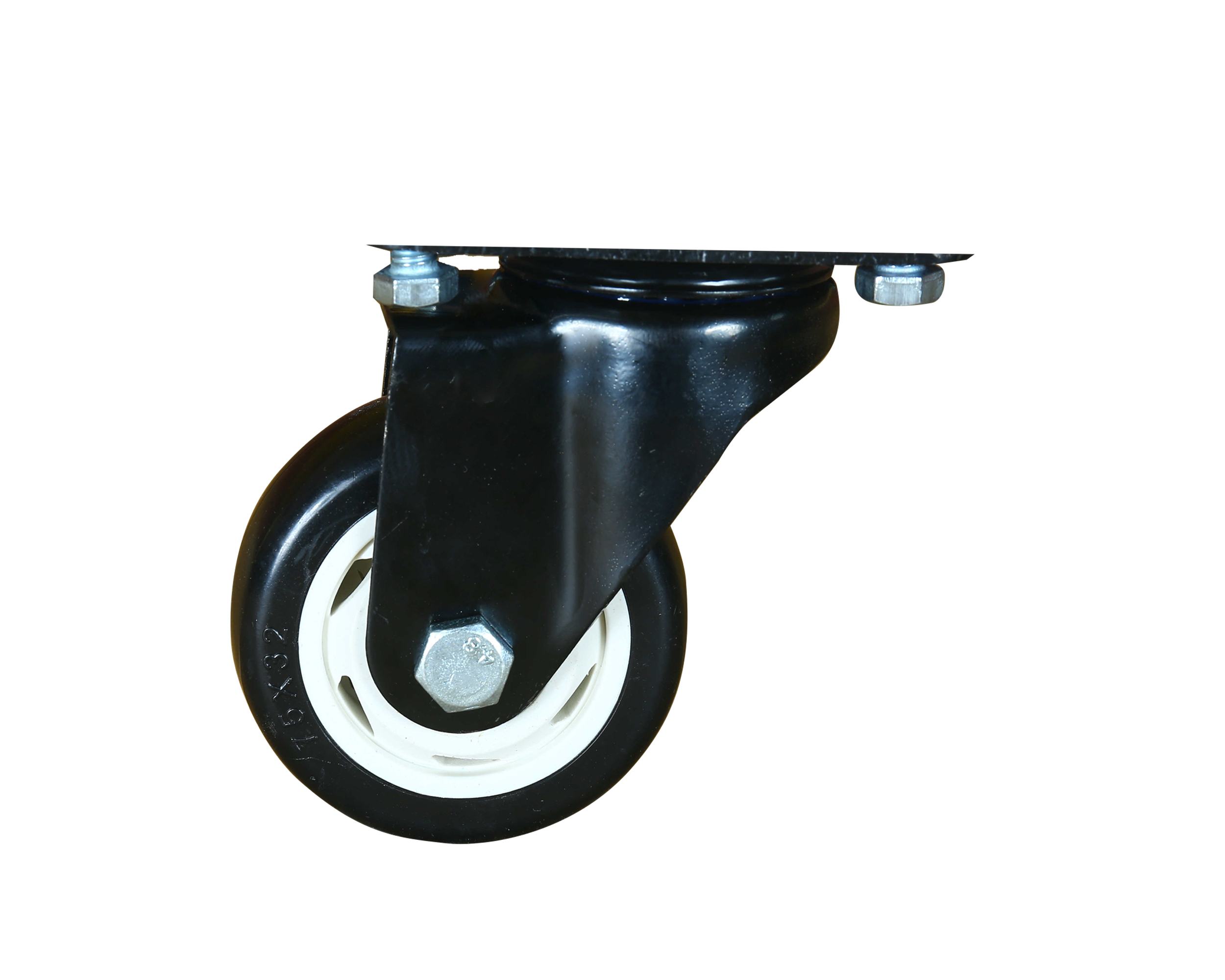

▸ Universal casters with brakes for flexible movement and reliable fixation

Configuration List:

Clean Bench 1
Power Cord 1
Product Manual, Test Report, etc. 1

 Technical Details

Cat.No. AG1000
Airflow direction Vertical
Control interface Push-button LCD display
Cleanliness ISO Class 5
No.of Colony ≤0.5cfu/Dish*0.5h
Average airflow speed 0.3~0.6m/s
Noise level ≤67dB
Illumination ≥300LX
Sterilization mode UV sterilization
Rated power. 152W
Specification and quantity of UV lamp 8W×2
Specification and quantity of lighting lamp 8W×1
Dimension of working area(W×D×H) 825×650×527mm
Dimension(W×D×H) 1010×725×1625mm
Specification and quantity of HEPA filter 780×600×50mm×1
Mode of operation Single people/single side
Power supply 115V~230V±10%, 50~60Hz
Weight 130kg

Shipping Information

Cat. No. Product name Shipping dimensions
W×D×H (mm)
Shipping weight (kg)
AG1000 Clean Bench 1080×800×1780mm 142
