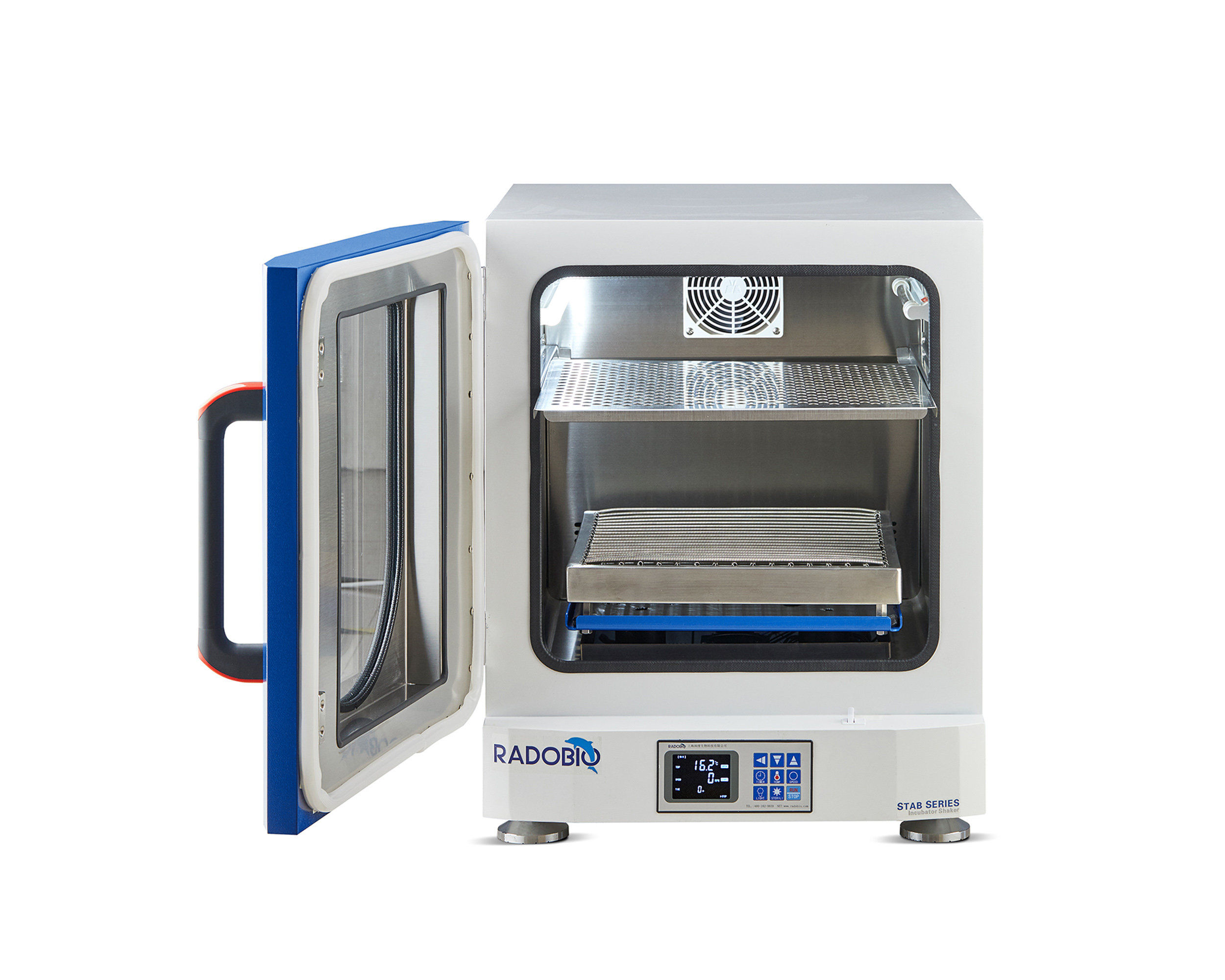

MS86 Multifunctional Stackable Incubator Shaker

short description:

Use

For shaking culture of microorganism , it’s UV sterilization stackable incubator shaker.


Product Detail

Product Tags

Models:

Cat. No. Product name Number of unit Dimension(W×D×H)
MS86 UV Sterilization Stackable Incubator Shaker 1 Unit(1 Unit) 550×676×700mm     (Base included)
MS86-2 UV Sterilization Stackable Incubator Shaker (2 Units) 1 Set(2 Units) 550×676×1350mm    (Base included)
MS86-D2 UV Sterilization Stackable Incubator Shaker (The Second Unit) 1 Unit(2nd Unit) 550×676×650mm

Key Features:

❏ Simple push-button operation panel with LCD display for intuitive and easy operation
▸ Push-button control panel makes it easy to control the switch and change its parameter values without special training
▸ Perfect appearance with display area for temperature, speed and timing. With the enlarged digital display and clear symbols on the monitor, you can observe from a greater distance

❏ Sliding black window, easy to push and pull for dark culture (Optional)
▸ For photosensitive media or organisms, culture can be performed by pulling up the sliding black window, which can prevents sunlight (UV radiation) from entering the interior of the incubator while retaining the convenience of viewing the interior of the incubator
▸ The sliding black window is positioned between the glass window and the outer chamber panel, making it convenient and aesthetically pleasing, and a perfect solution to the embarrassment of taping tin foil

❏ Double glass doors ensure excellent insulation and security
▸ Internal and external double glazed safety glass doors with excellent thermal insulation and safety protection

❏ UV sterilization system for better sterilization effect
▸ UV sterilization unit for effective sterilization, UV sterilization unit can be opened during rest time to ensure a clean culture environment inside the chamber

❏ Brushed full stainless steel rounded corners of the integrated cavity, beautiful and easy to clean
▸ Waterproof design of the incubator body, all water or mist-sensitive components including drive motors and electronic components are placed outside the chamber, so the incubator can be cultivated in high temperature and high humidity environment
▸ Any accidental breakage of bottles during incubation will not damage the incubator, and the bottom of the incubator can be cleaned directly with water or thoroughly cleaned with cleaners and sterilizers to ensure a sterile environment inside the incubator

❏ Machine operation is nearly silent, multi-unit stacked high-speed operation without abnormal vibration
▸ Stable start-up with unique bearing technology, almost noiseless operation, no abnormal vibration even when multiple layers are stacked
▸ Stable machine operation and longer service life

❏ One-piece molding flask clamp is stable and durable, effectively preventing unsafe incidents due to clamp breakage
▸ All of RADOBIO's flask clamps are cut directly from a single piece of 304 stainless steel, which is stable and durable and will not break, effectively preventing unsafe incidents such as flask breakage
▸ The stainless steel clamps are plastic sealed to prevent cuts to the user, while reducing friction between the flask and the clamp, bringing a better silent experience
▸ Various culture vessel fixtures can be customized

❏ Waterproof fan without heat, significantly reducing background heat and saving energy
▸ Compared with conventional fans, heatless waterproof fans can provide a more uniform and stable temperature in the chamber, while effectively reducing background heat and providing a wider range of incubation temperatures without activating the refrigeration system, which also saves energy

❏ Flexible placement, stackable, effective in saving lab space
▸ Can be used on the floor or on the floor stand in a single unit, or stacked in a double units for easy operation by laboratory personnel
▸ Without taking up additional floor space, the shaker can be stacked up to 2 units as the culture throughput increases Each incubator shaker in the stack operates independently, providing different incubation conditions

❏ Multi-safety design for operator and sample safety
▸ Optimized PID parameter settings that do not cause temperature overshoot during temperature rise and fall
▸ Fully optimized oscillation system and balancing system to ensure that no other unwanted vibrations occur during high speed oscillation
▸ After an accidental power failure, the shaker will remember the user's settings and automatically start up according to the original settings when the power comes back on, and automatically alert the operator of the accident that has occurred
▸ If the user opens the hatch during operation, the shaker oscillating plate will automatically brake flexibly until it stops oscillating completely, and when the hatch is closed, the shaker oscillating plate will automatically start flexibly until it reaches the preset oscillating speed, so there will be no unsafe events caused by sudden speed increase.
▸ When a parameter deviates far from the set value, the sound and light alarm system is automatically turned on

Configuration List:

Incubator Shaker 1
Shaking Tray with Interwoven Springs 1
Static Shelf 1
Fuse 2
Power Cord 1
Product Manual, Test Report, etc. 1

 Technical Details

Cat.No. MS86
Quantity 1 unit
Control interface Push-button operation panel
Rotation speed 2~300rpm depending on load and stacking
Speed control accuracy 1rpm
Shaking throw 26mm (Customization is available)
Shaking motion Orbital
Temperature control mode PID control mode
Temperature control range AT+5~60°C
Temperature display resolution 0.1°C
Temperature distribution ±0.5°C at 37°C
Principle of temp. sensor Pt-100
Power consumption max. 800W
Timer 0~999h
Tray size 370×400mm
Maximum working height 400mm (one unit)
Loading max. 15kg
Tray capacity of shake flask 16×250ml or 11×500ml or 7×1000ml or 5×2000ml (standard with Interwoven springs, Various other holders are available)
Maximum expansion Stackable up to 2 units
Dimension (W×D×H) 550×676×700mm (1 unit); 550×676×1350mm (2 units)
Internal dimension (W×D×H) 460×480×500mm
Volume 86L
Sterilization method UV sterilization
Ambient temperature 5~35°C
Power supply 230V±10%, 50/60Hz
Weight 75kg per unit
Material incubation chamber Stainless steel
Material outer chamber Painted steel
Optional item Sliding black window

*All products are tested in controlled environments in the manner of RADOBIO. We do not guarantee consistent results when tested under different conditions.

Shipping Information

Cat. No. Product name Shipping dimensions
W×D×H (mm)
Shipping weight (kg)
MS86 Stackable Incubator Shaker 650×800×860 90
