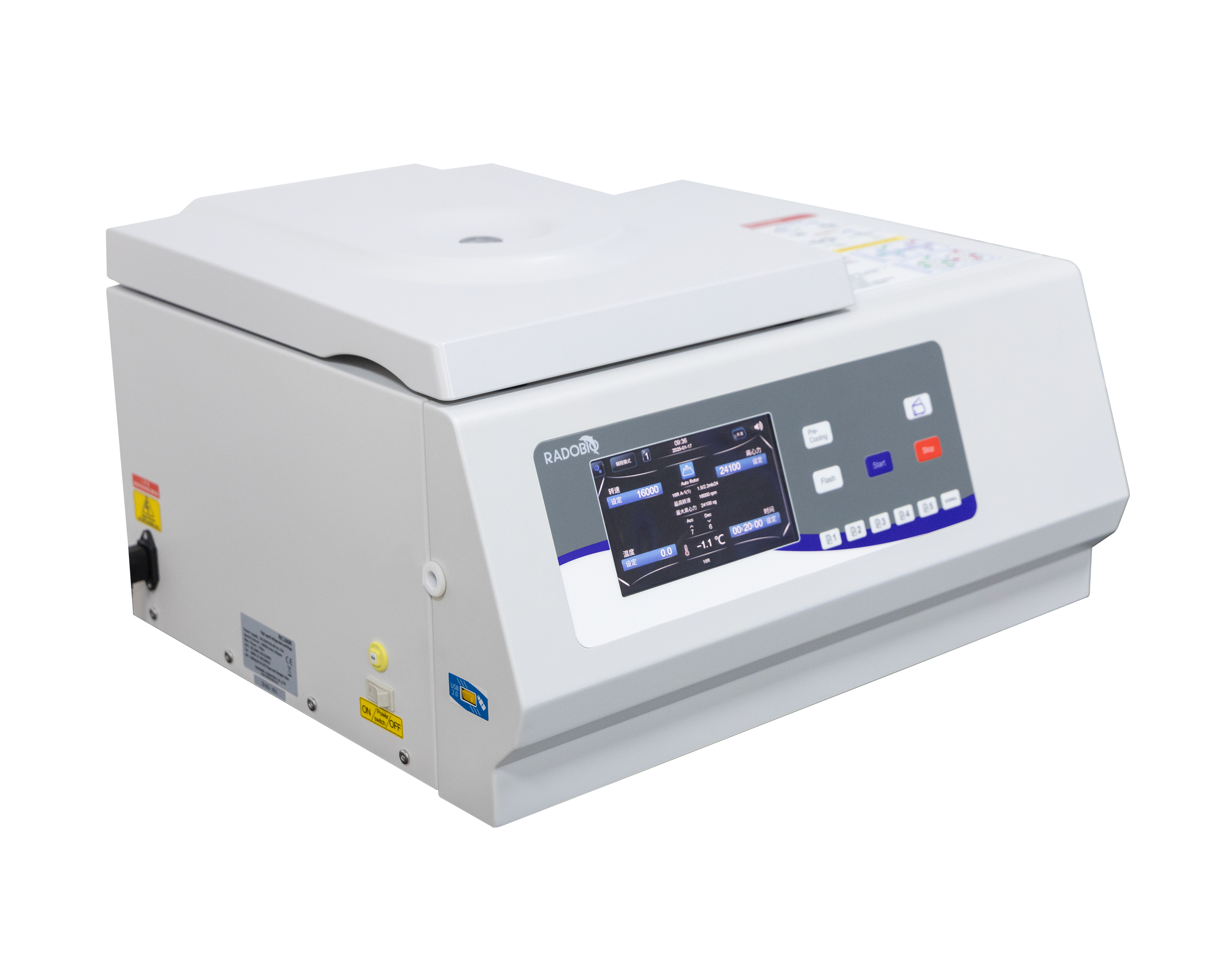

RC160R High Speed Refrigerated Centrifuge
| Cat.No. | Product name | Number of unit | Dimension(L×W×H) |
| RC160R | High Speed Refrigerated Centrifuge | 1 Unit | 493×584×345mm (Base included) |

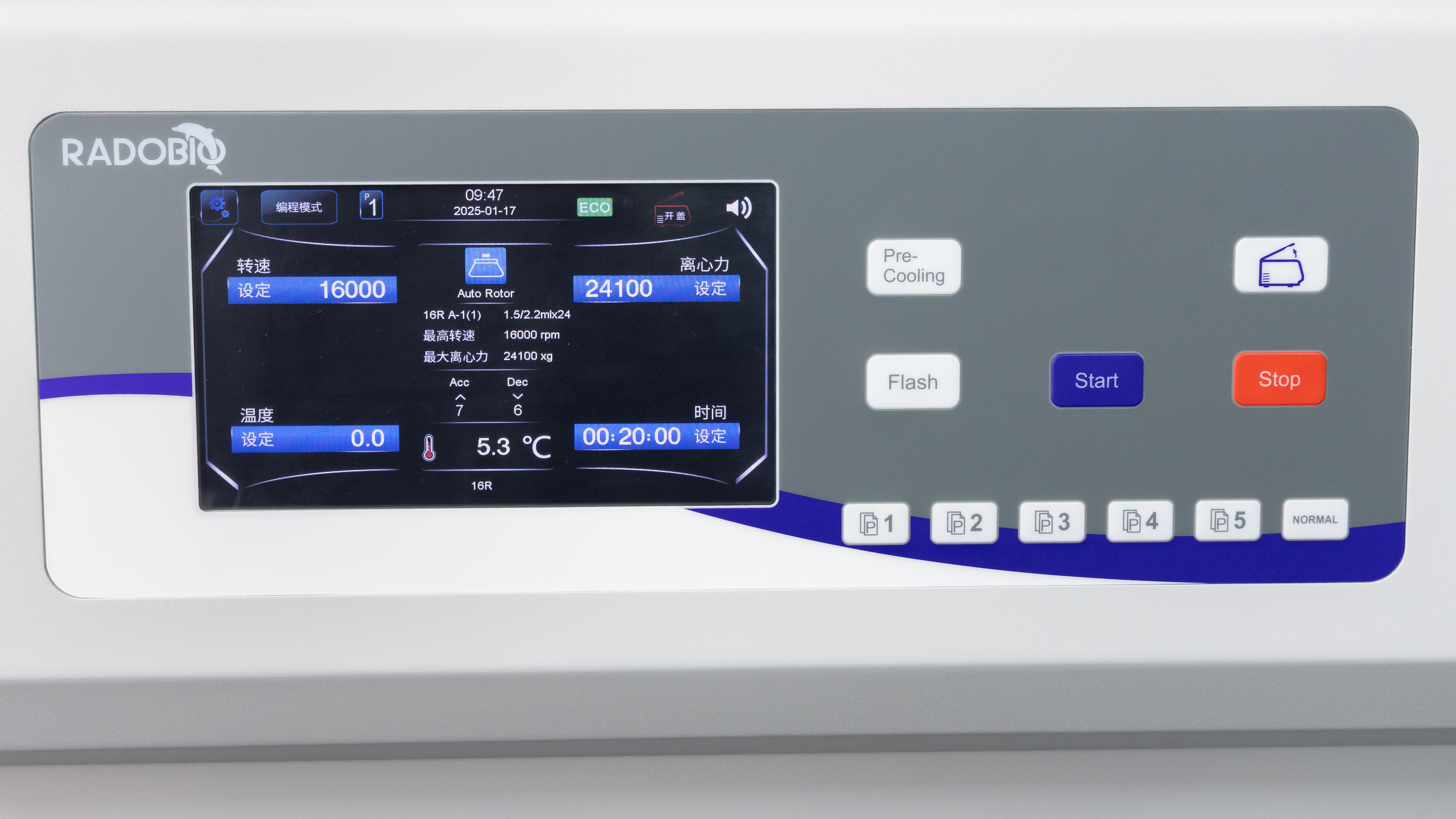

❏ 7-inch color touch control interface display
▸7-inch IPS full-view LCD screen with 16 million true-color display and adjustable brightness
▸Supports Chinese/English menu switching
▸30 customizable program presets for quick access, enhancing workflow efficiency
▸Built-in Start Timer and Stable Timer modes for accurate calculation of centrifugal efficiency
▸Multiple shutdown melodies and adjustable alert tones for a pleasant experimental experience
▸External USB 2.0 port for system updates and experimental data export
❏ Automatic Rotor Recognition & Imbalance Detection
▸Automatic rotor recognition and imbalance detection to ensure safety

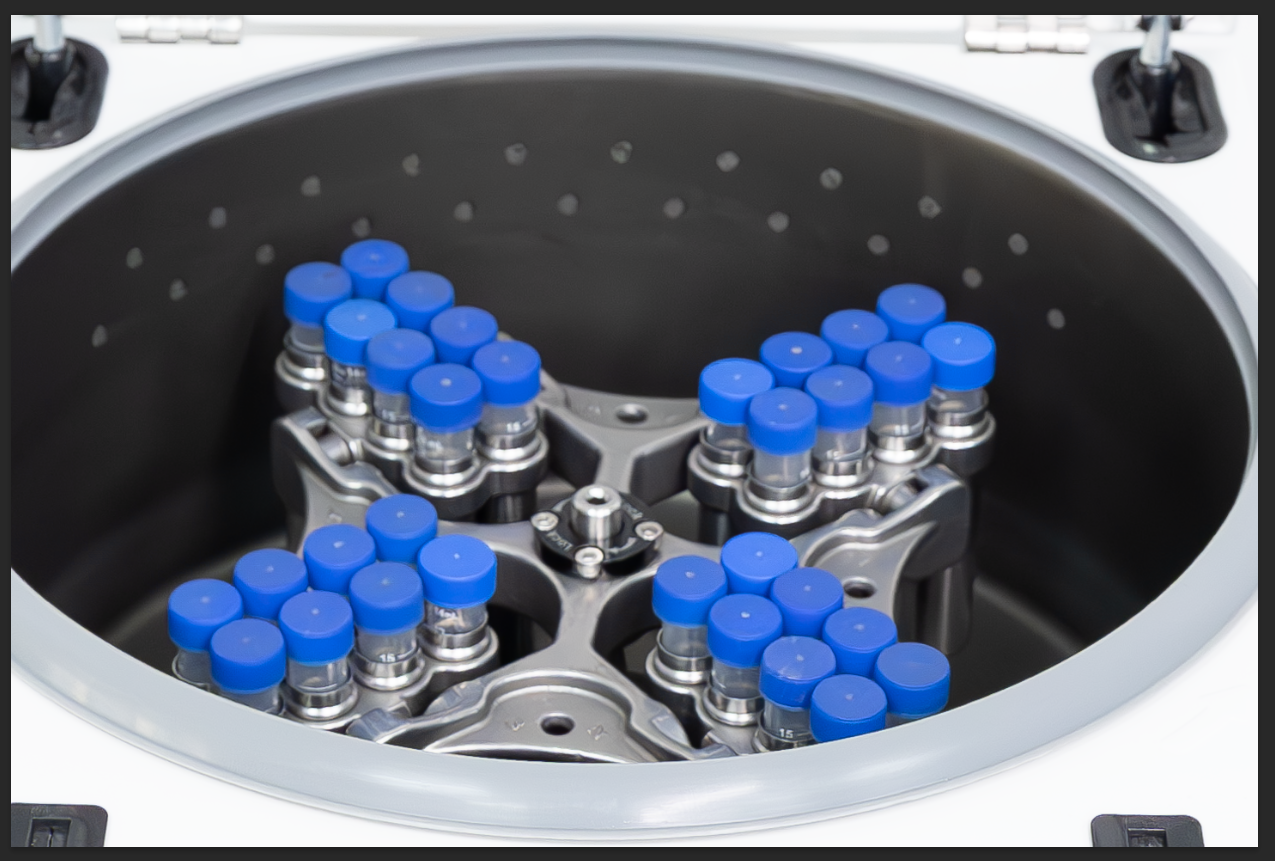

▸Wide selection of rotors and adapters compatible with all common centrifuge tubes
❏ Automatic Door Locking System
▸Dual locks enable quiet, secure door closure with a single press cartridges reduce
▸Smooth door operation via dual gas-spring assisted mechanism
❏ Rapid Refrigeration Performance
▸Equipped with a premium compressor for fast cooling, maintaining 4°C even at maximum speed
▸Dedicated Pre-Cooling button for rapid temperature drop to 4°C in ambient conditions
▸Adaptive temperature control across environments without manual intervention
❏ User-Centric Design
▸Instant Flash Spin button for quick short-duration centrifugation
▸Teflon-coated chamber resists corrosion from harsh samples
▸Compact footprint saves lab space
▸Long-lasting imported silicone door seal with superior airtightness
| Centrifuge | 1 |
| Power Cord | 1 |
| Product Manual, Test Report, etc. | 1 |
| Model | RC160R |
| Control Interface | 7-inch touchscreen (multi-touch) & physical buttons |
| Max Capacity | 400ml (100ml×4) |
| Speed Range | 100–16,000 rpm (10 rpm increments) |
| Speed Accuracy | ±20rpm |
| Max RCF | 23470×g |
| Temp. Range | -20~40°C (0~40°C at max speed) |
| Temp. Accuracy | ±2°C |
| Noise Level | ≤60 dB |
| Time Settings | 1~99h / 1~59m / 1~59s (3 modes; ±1s accuracy) |
| Program Storage | 30 presets |
| Door Lock Mechanism | automatic locking |
| Acceleration Time | 18s (9 acceleration levels) |
| Deceleration Time | 20s (10 deceleration levels) |
| Max Power | 750 W |
| Motor | Maintenance-free brushless frequency conversion induction motor |
| Data Interface | USB (data export and software upgrade) |
| Dimensions (W×D×H) | 493×584×345mm |
| Operating Environment | +5~40°C / 80% r.h |
| Power Supply | 230V, 50Hz |
| Net Weight | 60 kg |
*All products are tested in controlled environments in the manner of RADOBIO. We do not guarantee consistent results when tested under different conditions.
| Model | Description | Capacity × Tube Count | Max Speed | Max RCF |
| 160RA-1 | Fixed-angle rotor with lid | 1.5/2.2ml×24 | 16000 rpm | 23470×g |
| 160RA-2 | Fixed-angle rotor with lid | 1.5/2.2ml×36 | 14000 rpm | 17970×g |
| 160RA-3 | Fixed-angle rotor with lid | 0.5ml×36 | 15000 rpm | 16350×g |
| 160RA-4 | Fixed-angle rotor with lid | 5ml×12 | 16000 rpm | 18890×g |
| 160RA-5 | PCR strip rotor with lid | 0.2ml×8×4 | 14800 rpm | 16200×g |
| 160RA-6 | Fixed-angle rotor with lid | 15ml×8 | 13000 rpm | 17570×g |
| 160RA-7 | Fixed-angle rotor with lid | 50ml×6 & 1.5ml×6 | 12000 rpm | 14750×g |
| 160RA-8 | Fixed-angle rotor with lid | 100ml×4 | 12000 rpm | 15940×g |
| 160RA-9 | Fixed-angle rotor with lid | 10ml×12 | 13000 rpm | 15315×g |
| Cat.No. | Product Name | Shipping dimensions W×D×H (mm) |
Shipping weight (kg) |
| RC160R | High Speed Refrigerated Centrifuge | 600×585×485 | 77 |
