RC60L Centrifuge
| Cat.No. | Product name | Number of unit | Dimension(L×W×H) |
| RC60L | Centrifuge | 1 Unit | 418×516×338mm (Base included) |

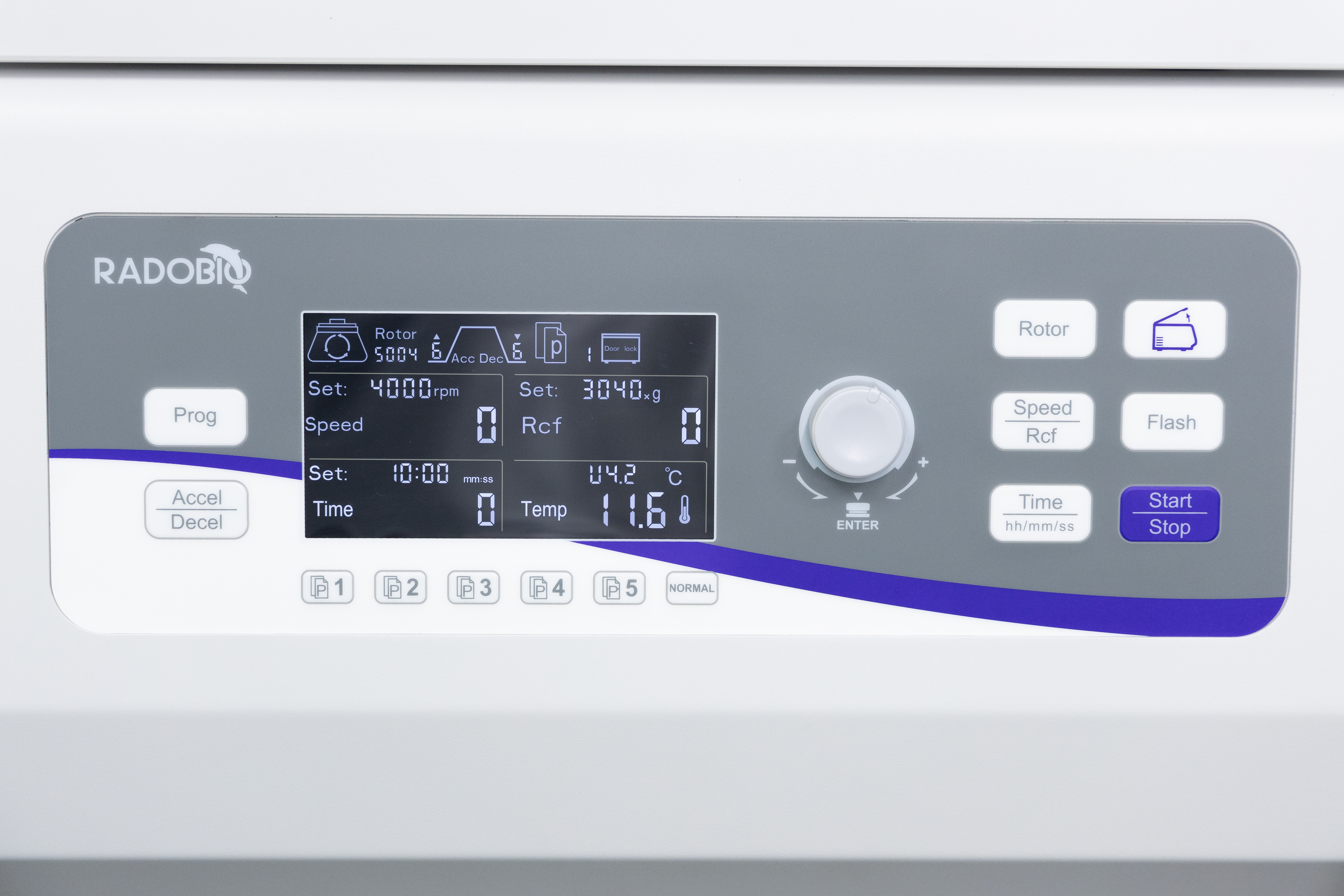

❏ 5-Inch LCD Display & Single-Knob Control
▸ 5-inch high-brightness LCD with black background and white characters for clear visibility
▸ Single-knob operation enables rapid parameter adjustments
▸ Supports Chinese/English menu switching
▸ 10 customizable program presets for quick recall and workflow efficiency
❏ Automatic Rotor Recognition & Imbalance Detection
▸ Ensures operational safety by detecting rotor compatibility and load imbalance.
▸ Compatible with a comprehensive selection of rotors and adapters for various tube types
❏ Automatic Door Locking System
▸ Dual locks enable quiet, secure door closure with a single press cartridges reduce ▸Smooth door operation via dual gas-spring assisted mechanism
❏ User-Centric Design
▸ Instant Flash Button: Single-touch operation for quick centrifugation
▸ Auto Door Opening: Post-centrifugation door release prevents sample overheating and simplifies access

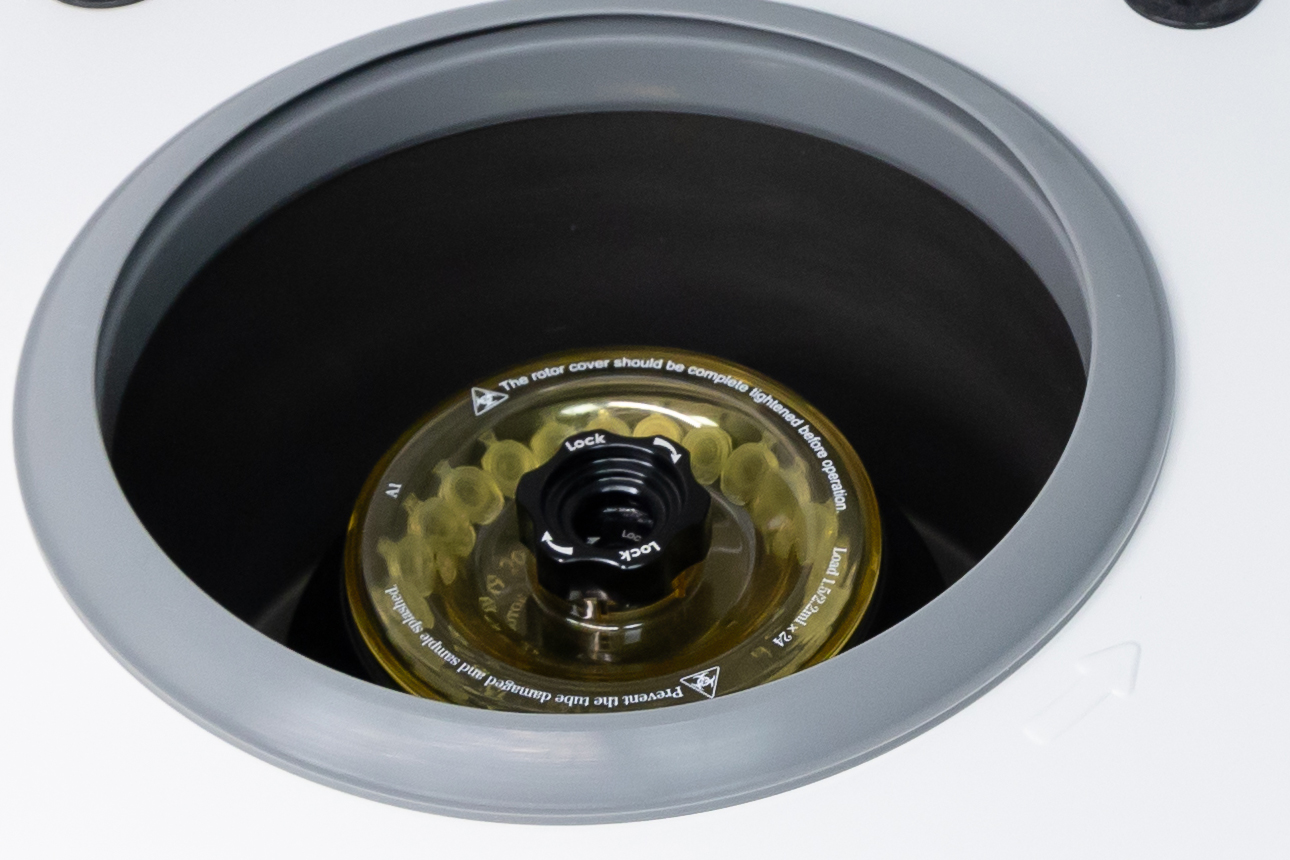

▸ Corrosion-Resistant Chambe: PTFE-coated interior withstands highly corrosive samples
▸ Premium Seal: Imported gas-phase silicone gasket ensures long-term airtight performance
| Centrifuge | 1 |
| Power Cord | 1 |
| Product Manual, Test Report, etc. | 1 |
| Model | RC60L |
| Control Interface | 5" LCD display & rotary knob & physical buttons |
| Max Capacity | 480ml (15ml×32 tubes) |
| Speed Range | 100–6000rpm (adjustable in 10 rpm increments) |
| Speed Accuracy | ±20rpm |
| Max RCF | 5150×g |
| Noise Level | ≤65dB |
| Time Settings | 1~99h / 1~59m / 1~59 s (3 modes; ±1s accuracy) |
| Program Storage | 10 presets |
| Door Lock Mechanism | automatic locking |
| Acceleration Time | 30s (9 acceleration levels) |
| Deceleration Time | 25s (10 deceleration levels) |
| Power Consumption | 450W |
| Motor | Maintenance-free brushless variable frequency induction motor |
| Dimensions (W×D×H) | 418×516×338mm |
| Operating Conditions | +5~40°C / ≤80% r.h |
| Power Supply | 230V, 50Hz |
| Weight | 36kg |
*All products are tested in controlled environments in the manner of RADOBIO. We do not guarantee consistent results when tested under different conditions.
| Model | Type | Capacity × Tube Count | Max Speed | Max RCF |
| 60LA-1 | Swing-out | 50 ml×4 | 5000rpm | 4980×g |
| 60LA-2 | Swing-out | 100ml×4 | 5000rpm | 4600×g |
| 60LA-3 | Swing-out | 50ml×8 | 4000rpm | 3040×g |
| 60LA-4 | Swing-out | 10/15ml×24 | 4000rpm | 3040×g |
| 60LA-5 | Swing-out | 10/15ml×24 | 4000rpm | 3040×g |
| 60LA-6 | Swing-out | 5ml×48 | 4000rpm | 3040×g |
| 60LA-7 | Swing-out | 5ml×64 | 4000rpm | 3040×g |
| 60LA-8 | Swing-out | 3/5/7ml×72 | 4000rpm | 3040×g |
| 60LA-10 | Microplate rotor | 4 standard plates×2 / 2 deep-well plates×2 | 4000rpm | 2860×g |
| 60LA-11 | Fixed-angle | 15ml×30 | 6000rpm | 5150×g |
| 60LA-12 | Fixed-angle | 50ml×8 | 6000rpm | 5150×g |
| 60LA-13 | Fixed-angle | 15ml×30 | 5000rpm | 4100×g |
| Cat.No. | Product Name | Shipping dimensions W×D×H (mm) |
Shipping weight (kg) |
| RC60L | Centrifuge | 740×570×495 | 48 |
